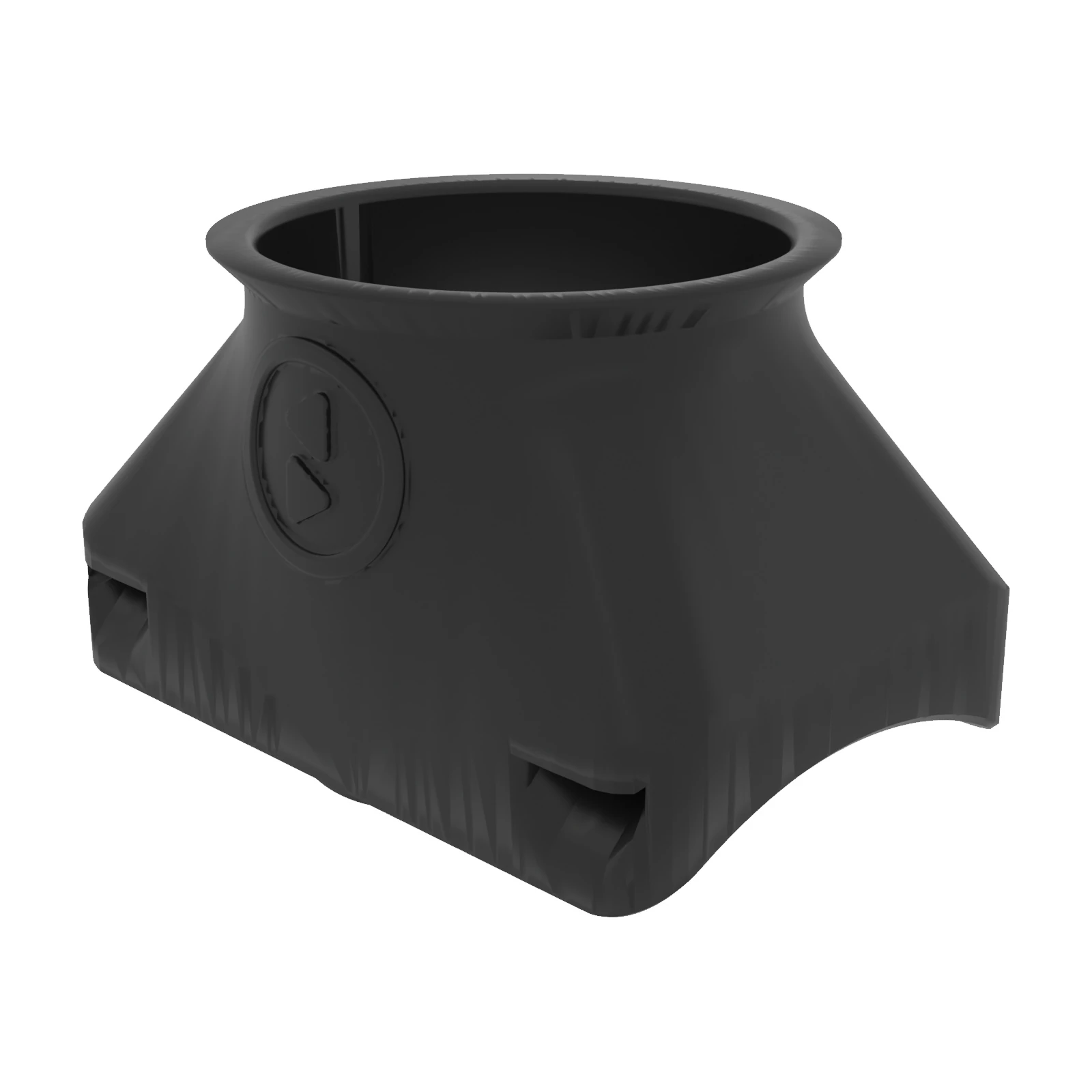

110mm Saddle Connector for Corrugated Land Drain (60mm / 80mm)
£12.95
Item price shown · UK delivery GBP 4.15 (Royal Mail Tracked 48) · Card checkout via Stripe (UK)
SKU: 9Q-6ZD2-JJF5
Specifications
- Size table (mm): 60mm
- SKU: 9Q-6ZD2-JJF5; Land drain: 60; Hole in 110mm pipe: 60; Socket bore x depth: 60.3 x 40; Overall in use (L x W x H above pipe): 100 x 66 x 48
- Size table (mm): 80mm
- SKU: Q5-H9ZA-RML5; Land drain: 80; Hole in 110mm pipe: 70; Socket bore x depth: 80.3 x 40; Overall in use (L x W x H above pipe): 120 x 85.5 x 53
- Size table note
- L runs along the 110mm pipe, W across it, and H from the pipe top to the socket mouth. The mouth ring is wider (71.5 / 91.5).
Details
Bring a corrugated land drain into an existing 110mm pipe run, such as a pipe to a soakaway, without cutting the pipe and fitting a junction. Bore a hole in the top or side of the smooth 110mm pipe, apply silicone sealant round the hole, seat the saddle and strap it down with two 450mm x 7.6mm zip ties (not included). Then push the corrugated land drain into the socket. Choose 60mm or 80mm. The sizes are in the table.
Bring a corrugated land drain into an existing 110mm pipe run, such as a pipe to a soakaway, without cutting the pipe and fitting a junction. Bore a hole in the top or side of the smooth 110mm pipe, apply silicone sealant round the hole, seat the saddle and strap it down with two 450mm x 7.6mm zip ties (not included). Then push the corrugated land drain into the socket. The 60mm saddle needs a 60mm hole and the 80mm saddle needs a 70mm hole.
How to fit

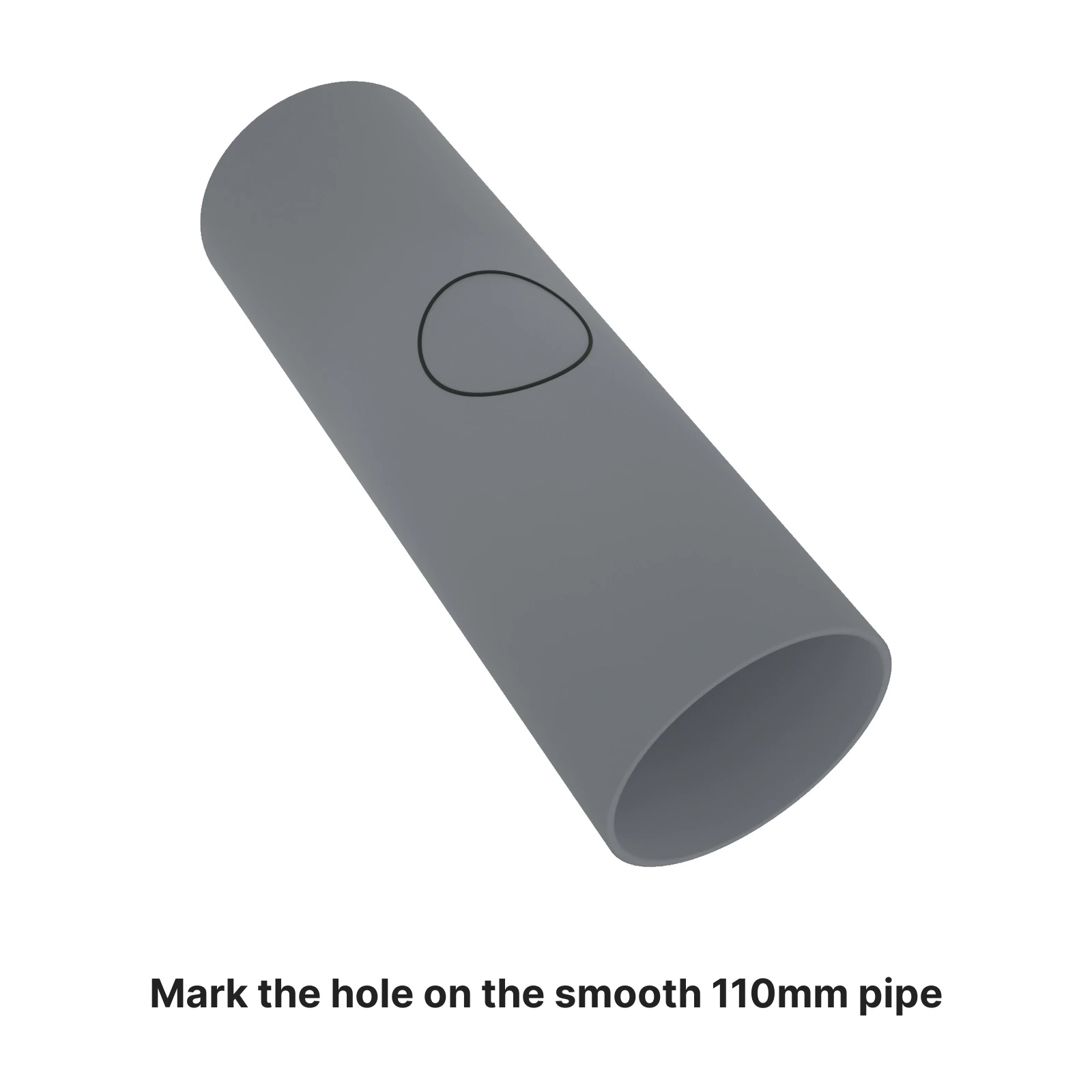

1. Mark the hole on the smooth 110mm pipe.
60mm

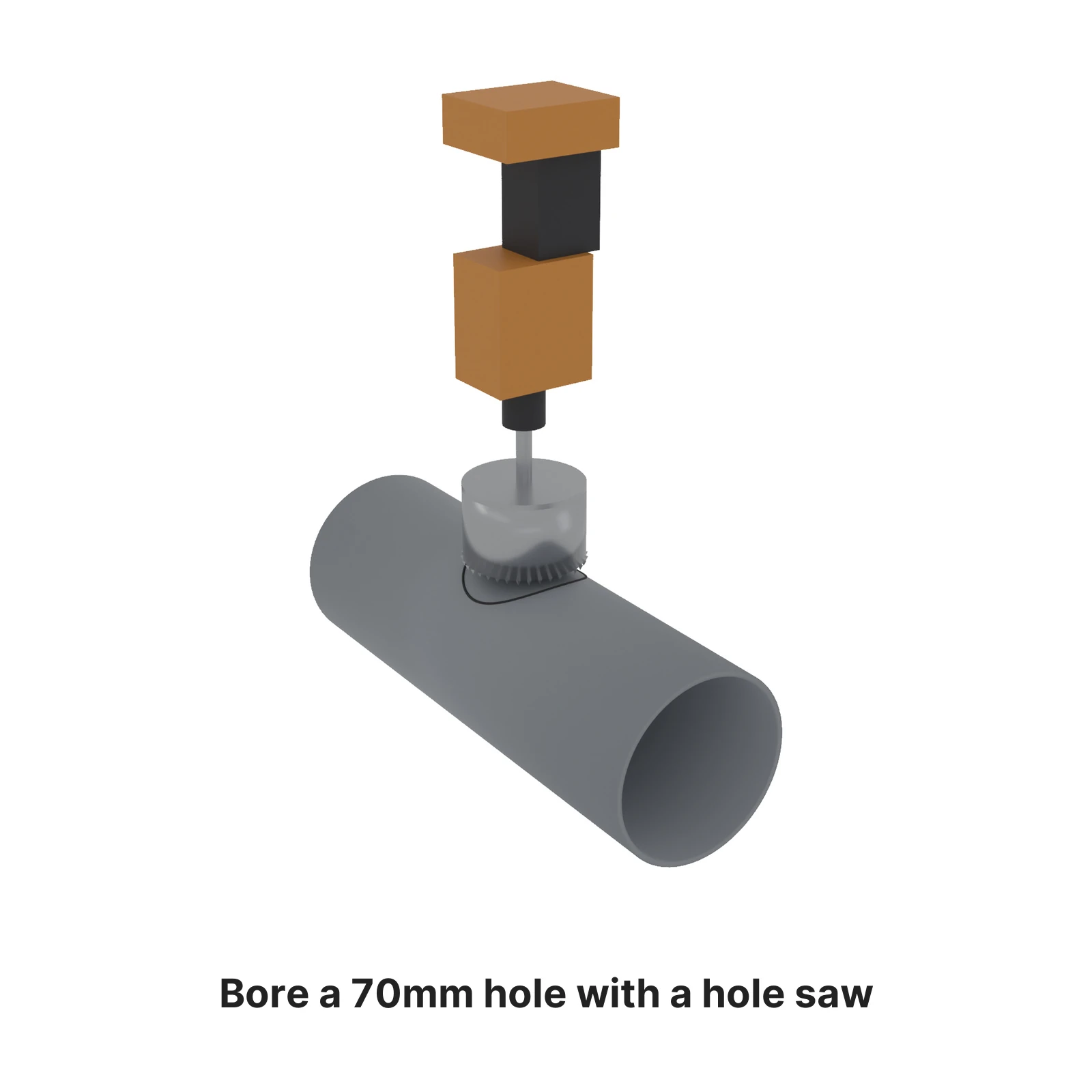

80mm 2. Bore a 60mm hole (70mm for the 80mm saddle) with a hole saw.

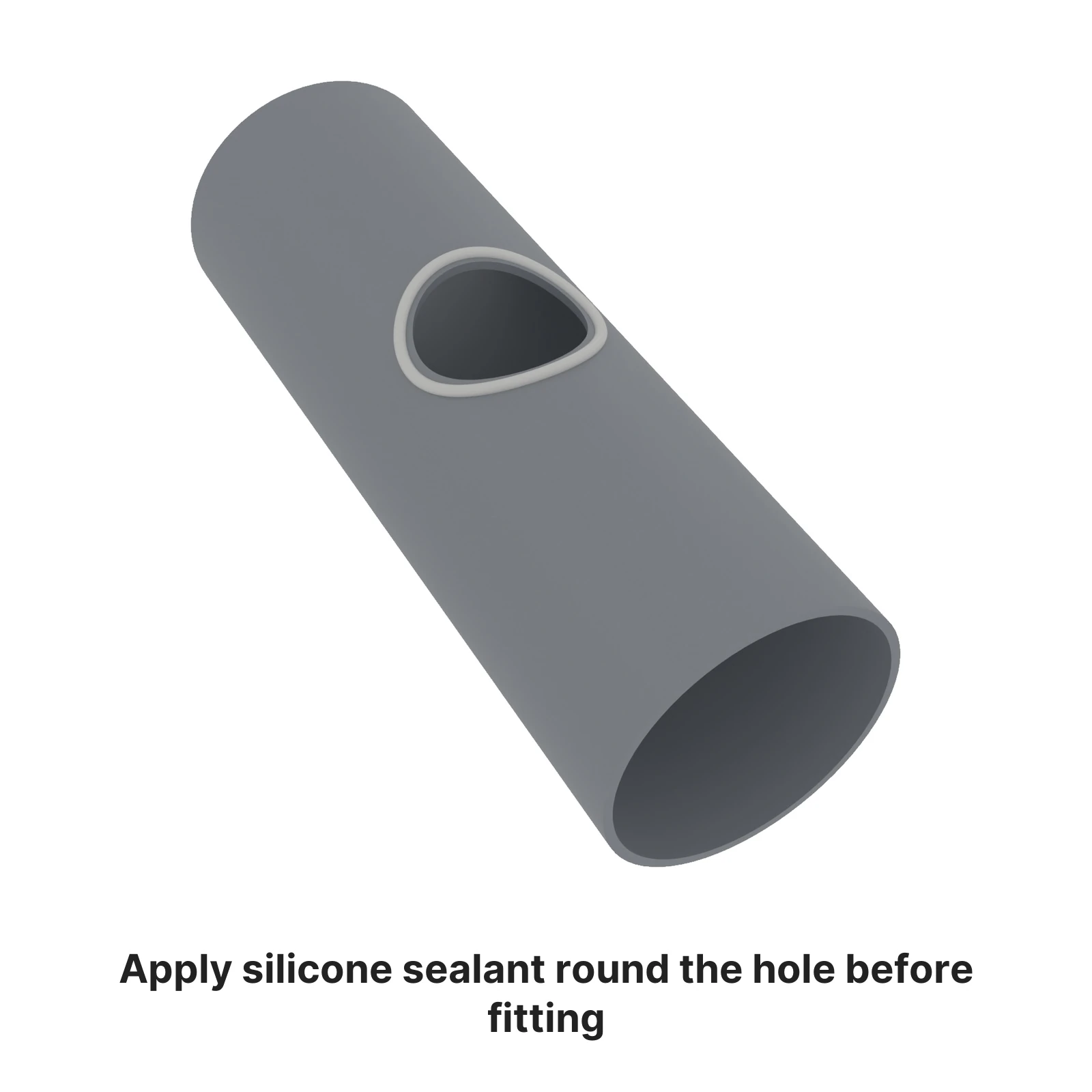

3. Apply silicone sealant round the hole before fitting.

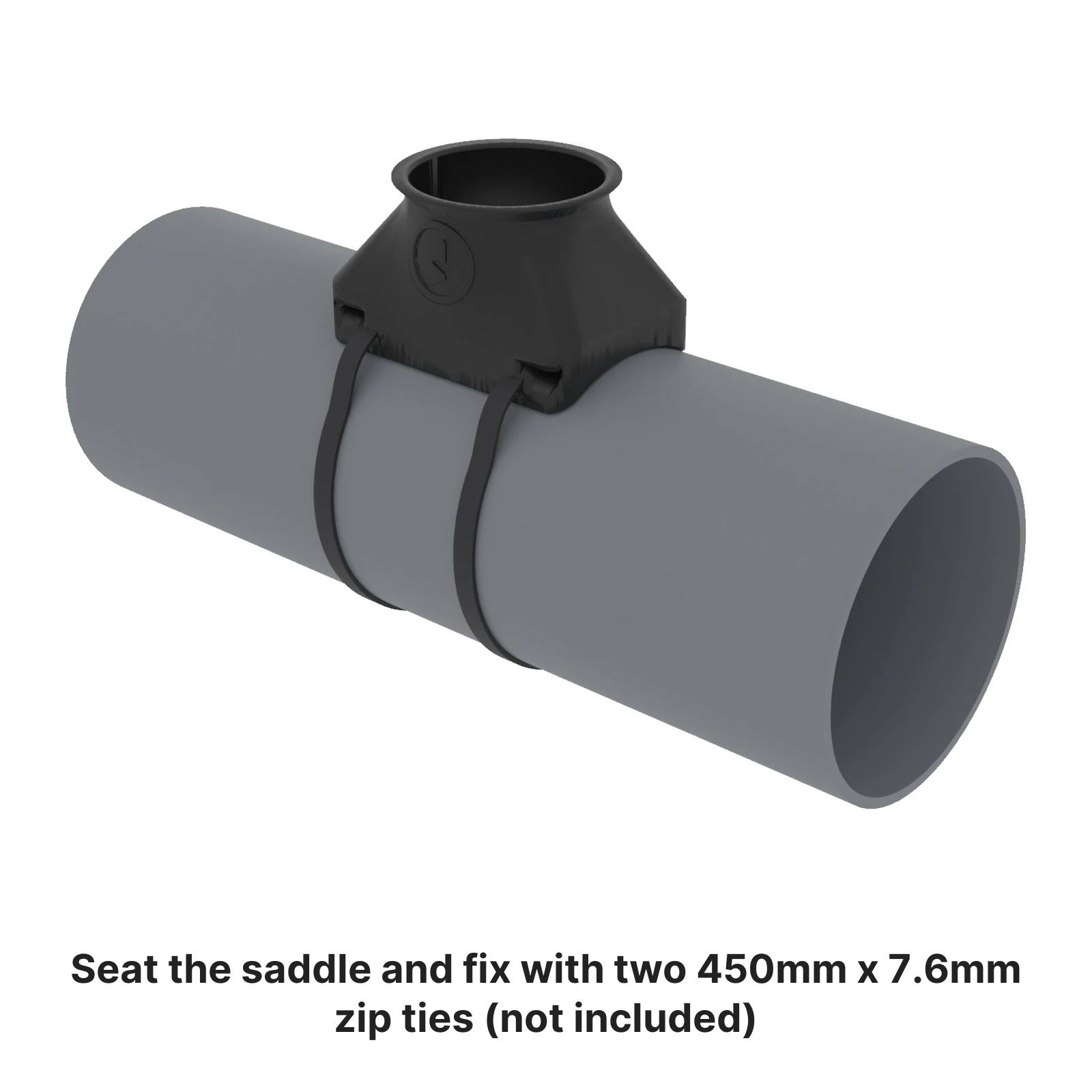

4. Seat the saddle and fix with two 450mm x 7.6mm zip ties (not included).

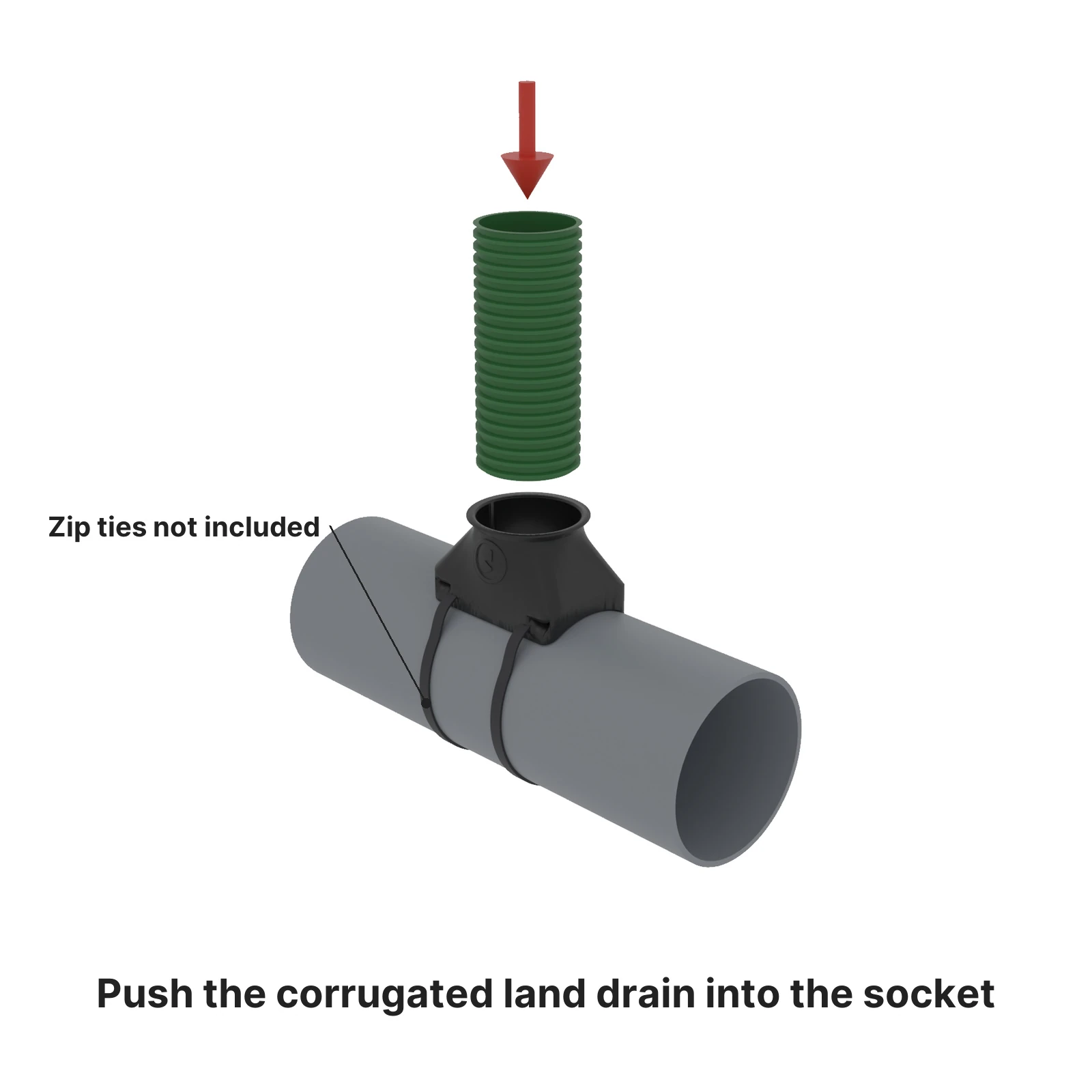

5. Push the corrugated land drain into the socket.
Benefits
- Joins 60mm or 80mm corrugated land drain pipe into the side of a smooth 110mm pipe, without cutting in a junction.
- Bore a hole in the 110mm pipe: 60mm for the 60mm saddle, 70mm for the 80mm saddle; a hole saw of that size is recommended.
- The saddle sits over the hole, and the land drain slides into its socket up to the pipe stop. The branch comes off at 90°.
- Held on with two 450mm x 7.6mm zip ties through the two tunnels in the saddle (zip ties not included). Apply silicone sealant round the hole before fitting.
- Socket 40mm deep, bore 60.3mm (60mm) or 80.3mm (80mm). Overall above the pipe: 60mm saddle 100 x 66mm, standing 48mm; 80mm saddle 120 x 85.5mm, standing 53mm.
- Black PETG, made in the UK. For garden land drainage, not foul or soil pipe.
- Fits smooth 110mm pipe only, not corrugated 110mm. Pipe sizes vary by brand, so check fit before ordering. Pipe and zip ties not included; sold as a single saddle.
