Grid End Cap 50, 60, 80 and 100mm, Fits Over Land Drain Pipe, UK Made
£2.80
Item price shown · UK delivery GBP 2.05 (Royal Mail 2nd Class Large Letter) · Card checkout via Stripe (UK)
Measurements: 50.3mm socket for 50mm pipe
- Socket ID
- 50.3 mm
- Outer diameter
- 53.5 mm
- Socket depth
- 20.1 mm
- Wall
- 1.6 mm
- Floor
- 1.8 mm
- Height
- 21.9 mm
- Slot width
- 4.0 mm
Quantity
SKU: 5T-1LHG-W03E
Specifications
- Pipe sizes
- 50mm, 60mm, 80mm or 100mm land drain pipe
- Compatibility
- Corrugated perforated land drain pipe (cap fits over the pipe)
- Type
- grid end cap (fits over the pipe end)
- Number in box
- 1
- Material
- black PETG
- Colour
- Black
- Country of origin
- UK
- Brand
- The Shape Shop
- All sizes
- Height 21.9 mm, socket depth 20.1 mm, wall 1.6 mm, floor 1.8 mm, slot width 4.0 mm
- 50.3mm socket for 50mm pipe
- SKU 5T-1LHG-W03E; for 50mm pipe; socket ID 50.3 mm; max outside diameter 54.5 mm; weight about 10.4 g; open area about 20.2%
- 60.3mm socket for 60mm pipe
- SKU JD-T4QR-3U86; for 60mm pipe; socket ID 60.3 mm; max outside diameter 64.5 mm; weight about 12.6 g; open area about 27.2%
- 80.3mm socket for 80mm pipe
- SKU 3B-S37O-88AC; for 80mm pipe; socket ID 80.3 mm; max outside diameter 84.5 mm; weight about 18.6 g; open area about 29.7%
- 100.3mm socket for 100mm pipe
- SKU 8W-18YG-0HG0; for 100mm pipe; socket ID 100.3 mm; max outside diameter 104.5 mm; weight about 25.3 g; open area about 31.1%
- Outlets
- grid face, 4.0mm slots
- Dimensions
- see size table; socket depth 20.1mm, height 21.9mm
- Weight and code
- see size table
- Size table (mm): 50mm
- Code: 5T-1LHG-W03E; Pipe OD: 49.5; Socket bore: 50.3; Max outside diameter: 54.5; Socket depth: 20.1; Height: 21.9; Weight: 10.4g
- Size table (mm): 60mm
- Code: JD-T4QR-3U86; Pipe OD: 59.5; Socket bore: 60.3; Max outside diameter: 64.5; Socket depth: 20.1; Height: 21.9; Weight: 12.6g
- Size table (mm): 80mm
- Code: 3B-S37O-88AC; Pipe OD: 79.5; Socket bore: 80.3; Max outside diameter: 84.5; Socket depth: 20.1; Height: 21.9; Weight: 18.6g
- Size table (mm): 100mm
- Code: 8W-18YG-0HG0; Pipe OD: 99.5; Socket bore: 100.3; Max outside diameter: 104.5; Socket depth: 20.1; Height: 21.9; Weight: 25.3g
- Fit check
- Pipe sizes vary by brand, so check fit before ordering.
Details
Grid end cap that fits over the outside of 50, 60, 80 or 100mm corrugated land drain and lets water and air through. Choose the size for your pipe.

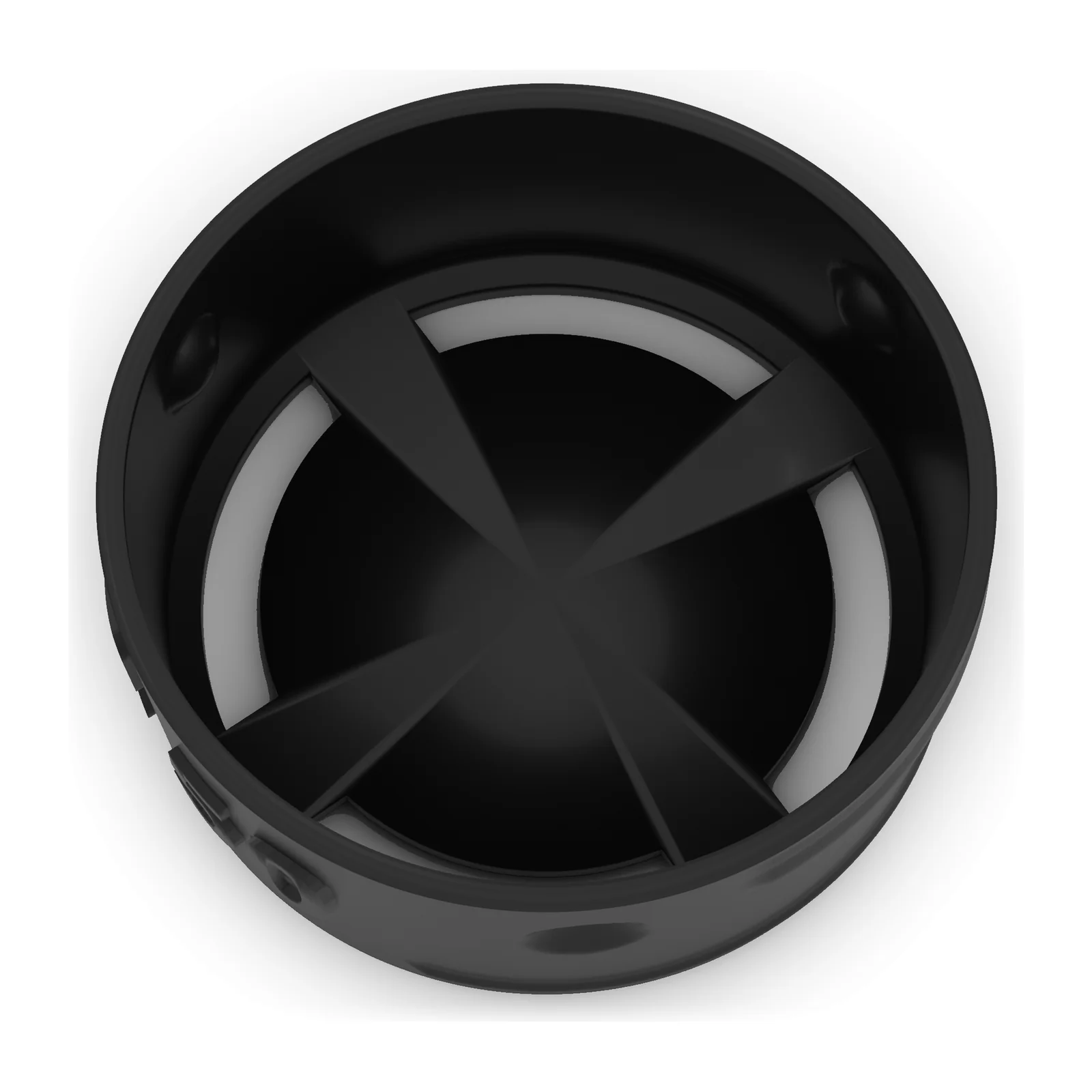

A land drain grid end cap that slides over the outside of the pipe end. Grid face with 4.0mm slots lets water out of the end of the run and keeps stones and debris out.
Choose the size shown on your coil. The socket is 0.8mm wider than the pipe it fits: 50.3mm for 49.5mm pipe, 60.3mm for 59.5mm, 80.3mm for 79.5mm and 100.3mm for 99.5mm. Socket depth 20.1mm.
Black, made in the UK. Pipe not included; sold as a single end cap.
Benefits
- Fits 50mm, 60mm, 80mm or 100mm land drain pipe.
- How it fits: the cap slides over the outside of the pipe end. Socket 50.3mm for 49.5mm pipe, 60.3mm for 59.5mm, 80.3mm for 79.5mm, 100.3mm for 99.5mm.
- Pipe not included. Sold as a single grid end cap.
- Grid face with 4.0mm slots lets water out of the end of the run and keeps stones and debris out.
- Socket depth 20.1mm, height 21.9mm. Weight 10.4g / 12.6g / 18.6g / 25.3g (50 / 60 / 80 / 100mm).
- Black, made in the UK. For garden land drainage, not foul or soil pipe.
FAQs
- Which size do I need?
- Pipe sizes vary by brand, so check fit before ordering.
- Does it go over the pipe?
- Yes. The cap slides over the outside of the pipe end.
- Is pipe included?
- No. Sold as a single end cap.
- Cap or plug: which do I need?
- This is a cap: it goes on the outside of the pipe. A plug pushes into the pipe end instead.
