Recessed Rodding Cover Kit 110mm for Paving and Patios, UK Made
£39.99
Item price shown · UK delivery GBP 4.15 (Royal Mail Tracked 48) · Card checkout via Stripe (UK)
SKU: LP-X2ML-7Q34
Specifications
- Contents
- 1 lid, 1 frame (integral plate), 1 spigot, 4 clips
- Material
- black PETG
- Brand
- The Shape Shop
- Frame outer
- 151.4 mm
- Frame pocket
- 145 mm
- Plate
- 159.4 mm
- Frame height
- 73.8 mm
- Lid outer
- 143 mm
- Tray clear
- 136.6 mm
- Tray depth
- 60 mm
- Lid height
- 64.8 mm
- Lid floor
- 4.8 mm
- Lid fit
- Flush with the frame rim
- Pipe fit
- Spigot pushes into smooth 110 mm underground pipe (spigot OD 102 mm); check the bore. A socket or collar may clash with the clips.
- Finished depth
- 78.8 mm from pipe top to finished surface
- Use
- Garden paths and patios (porcelain, block paving or resin infill). Keep cars, vans and heavy point loads off. Do not plate-compact over the frame edge.
- Not included
- Gasket, adhesive (adhesive is a fallback where the clips clash with a socket or collar)
- Pack quantity
- 1 kit
- Country of origin
- UK
- Condition
- New
- Revision
- Rev 145c
- Type
- recessed rodding cover kit
- Pipe size
- 110mm smooth underground drainage pipe
- Outlets
- 1 (rodding access)
- Dimensions
- frame 151.4mm, plate 159.4mm, lid 143mm, tray depth 60mm, finished depth 78.8mm
- Code
- LP-X2ML-7Q34
- Size table (mm): Frame outer
- Size: 151.4
- Size table (mm): Plate
- Size: 159.4
- Size table (mm): Frame height
- Size: 73.8
- Size table (mm): Lid outer
- Size: 143
- Size table (mm): Tray clear
- Size: 136.6
- Size table (mm): Tray depth
- Size: 60
- Size table (mm): Spigot outside
- Size: 102
- Size table (mm): Pipe top to finished surface
- Size: 78.8
- Fit check
- Pipe sizes vary by brand, so check fit before ordering.
Details

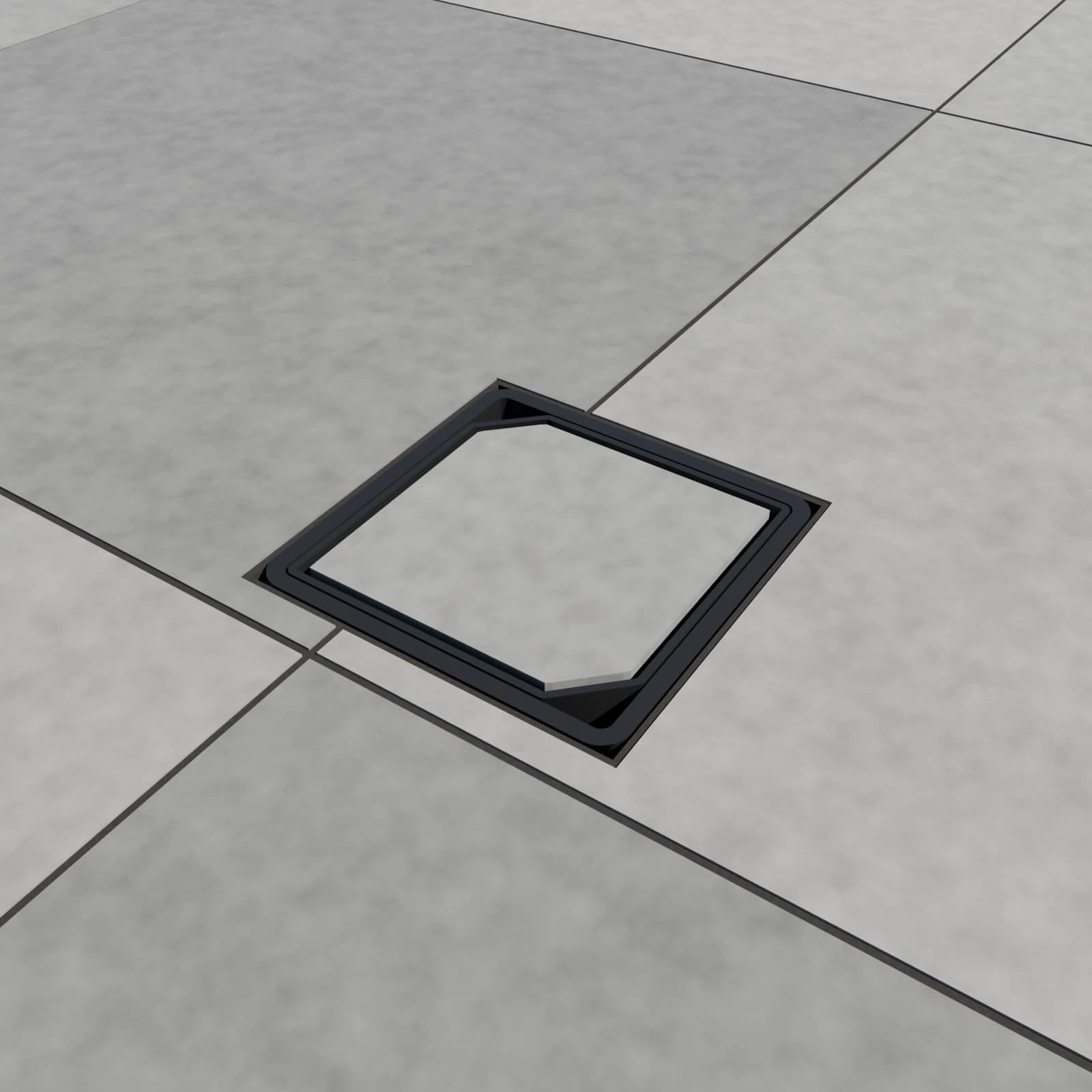

Kit to hide a 110mm underground rodding point under a patio or path. The lid tray is filled with matching porcelain, block paving or resin.
A recessed rodding cover kit for 110mm underground drainage pipe. The lid has a 60mm deep tray, so the cover takes the same paving as the path around it.
The spigot (102mm outside) pushes into smooth 110mm pipe and four clips hold it. If a socket or collar clashes with the clips, adhesive is a fallback. Allow 78.8mm from the top of the pipe to the finished surface.
For garden paths and patios. Keep cars and vans off it and do not plate-compact over the frame edge. The lid has weep holes and no gasket, so it does not keep water out.
Black PETG, made in the UK. Pipe not included; sold as a single kit.
Benefits
- Fits smooth 110mm underground drainage pipe. Check the size shown on your pipe.
- How it fits: the 102mm spigot pushes into the 110mm pipe and clips hold it. A socket or collar may clash with the clips; adhesive is a fallback.
- Pipe not included. Sold as a single kit: 1 lid, 1 frame with plate, 1 spigot, 4 clips.
- Rodding access hidden under paving: the 60mm deep tray takes porcelain, block paving or resin.
- Frame 151.4mm, plate 159.4mm, lid 143mm. Allow 78.8mm from pipe top to finished surface.
- Black PETG, made in the UK. For garden paths and patios; keep cars and vans off it.
FAQs
- What is in the kit?
- One lid with an infill tray, one frame with an integral plate, one spigot and four clips.
- How does it fit the pipe?
- The spigot pushes into smooth 110mm pipe. Check the bore of your pipe first.
- Is pipe included?
- No. Sold as a single kit.
- How deep does it need to be?
- Allow 78.8mm from the top of the pipe to the finished surface.
- Can cars go over it?
- No. It is for garden paths and patios.
- Does it keep water out?
- No. The lid has weep holes and no gasket.
